Standard Specification
MATERIA | Hose SUS304, SUS316L End tube SUS304, SUS316L Mesh sleeve SUS304, SUS316L |
WORKING PRESSURE | See table |
ALLOWABLE LEAK RATE | 1.33x10-10 Pa·m3/sec and below |
Standard Size
bore | D | T | D1 | LI | L(mm) | Pressure (MPa) | Minimum bending radius (mm) | ||
no internet | with a net | static | Dynamic | ||||||
6 | 6.35 | 1 | 11.1 | 30/50 | 200~10000 | -0.1~0.2 | -0.1~4.0 | 50 | 110 |
8 | 9.52 | 1.24 | 14 | 30/50 | 200~10000 | -0.1~0.2 | -0.1~3.0 | 65 | 145 |
10 | 12.7 | 1.24 | 16.5 | 30/50 | 200~10000 | -0.1~0.2 | -0.1~2.5 | 80 | 180 |
Remarks
3/4‘ (ORV-20PS) and 1’ (ORV-25PS) hoses can be manufactured (please consult us if you have any questions about selection).

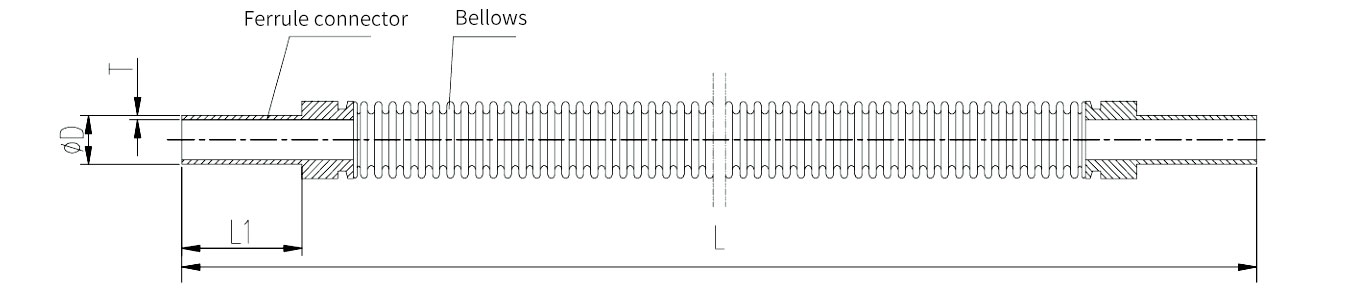

Non-mesh vacuum hose

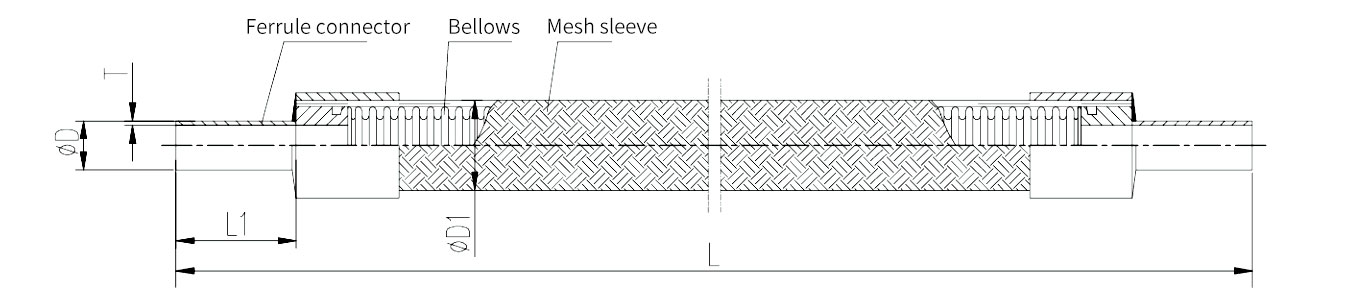

Vacuum hose with mesh
