Standard Specification
| MATERIA | Hose SUS304, SUS316L End tube SUS304, SUS316L Mesh sleeve SUS304, SUS316L |
| WORKING PRESSURE | See table |
| ALLOWABLE LEAK RATE | 1.33x10-10 Pa·m3/sec and below |
Standard Size
| bore | bore | D1 | L(mm) | Pressure (MPa) | Minimum bending radius (mm) | |
| With mesh | Static | Dynamic | ||||
| 6 | 1/4" | 11.1 | 200~10000 | -0.1~4.0 | 50 | 110 |
| 8 | 3/8" | 14 | 200~10000 | -0.1~3.0 | 65 | 145 |
| 10 | 1/2" | 19.5 | 200~10000 | -0.1~2.0 | 95 | 215 |
Remarks

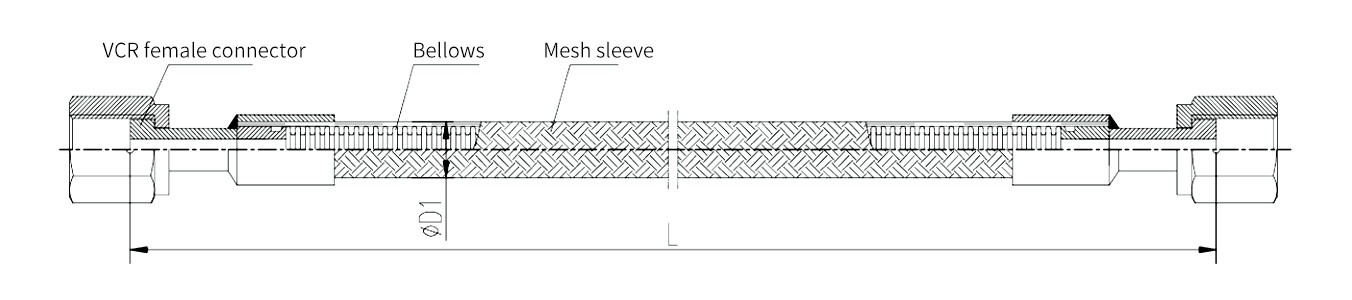

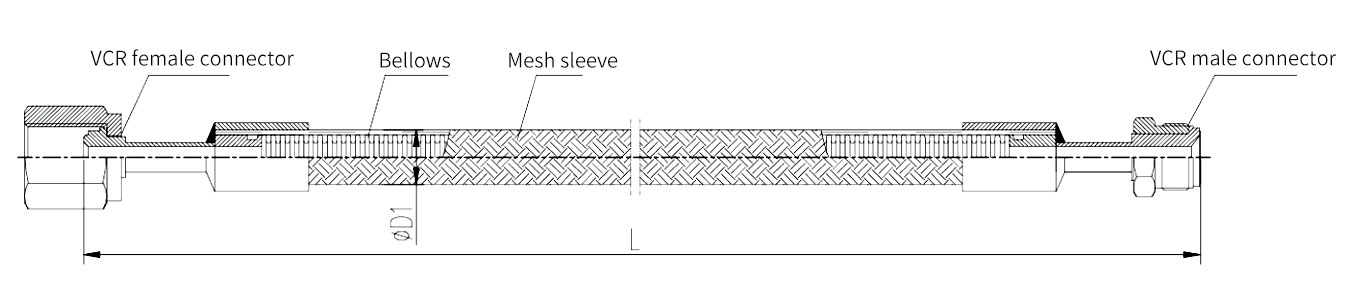

These models are connector types and are equipped with metal seal connectors. Please specify the connector model.
Vacuum hose with mesh

Vacuum hose with mesh
