Standard Specification

MATERIA	Hose SUS304, SUS316L Flange SUS304, SUS316L Mesh sleeve SUS304, SUS316L
WORKING PRESSURE	Vacuum to atmospheric pressure
ALLOWABLE LEAK RATE	1.33x10^-10Pa·m³/sec and below

Standard Size

bore	CK	D	K	N-∅H	D1	L(mm)	Pressure (MPa)		Minimum bending radius (mm)
bore	CK	D	K	N-∅H	D1	L(mm)	no internet	with a net	static	Dynamic
20	CF20	54	41.3	6-∅6.6	28.2	200~5000	-0.1~2.0	-0.1~1.6	160	360
25	CF25	60	47	6-∅6.6	34	200~5000	-0.1~2.0	-0.1~1.6	175	400
32	CF32	70	54	6-∅6.6	43	200~5000	-0.1~2.0	-0.1~1.6	225	510
40	CF40	70	58.7	6-∅6.6	53	200~5000	-0.1~2.0	-0.1~1.6	280	640
50	CF50	86	72.4	8-∅8.4	64	200~5000	-0.1~2.0	-0.1~1.6	350	800

Remarks

If you have any questions about selection, please consult us. We can manufacture hoses of lengths not shown in column L. We can manufacture hoses with dimensions of DN65 or larger.

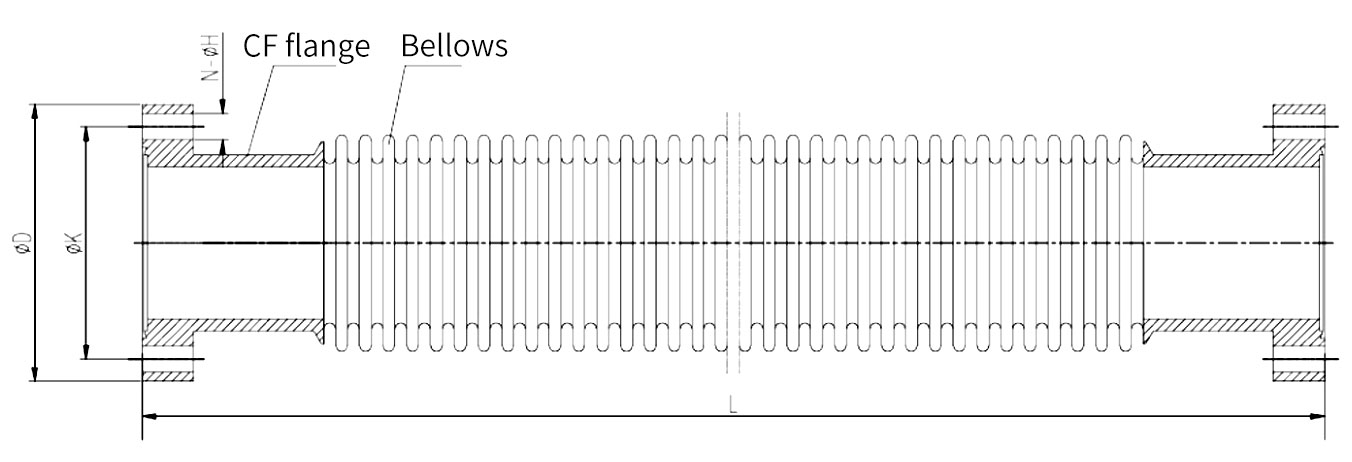

Non-mesh vacuum hose

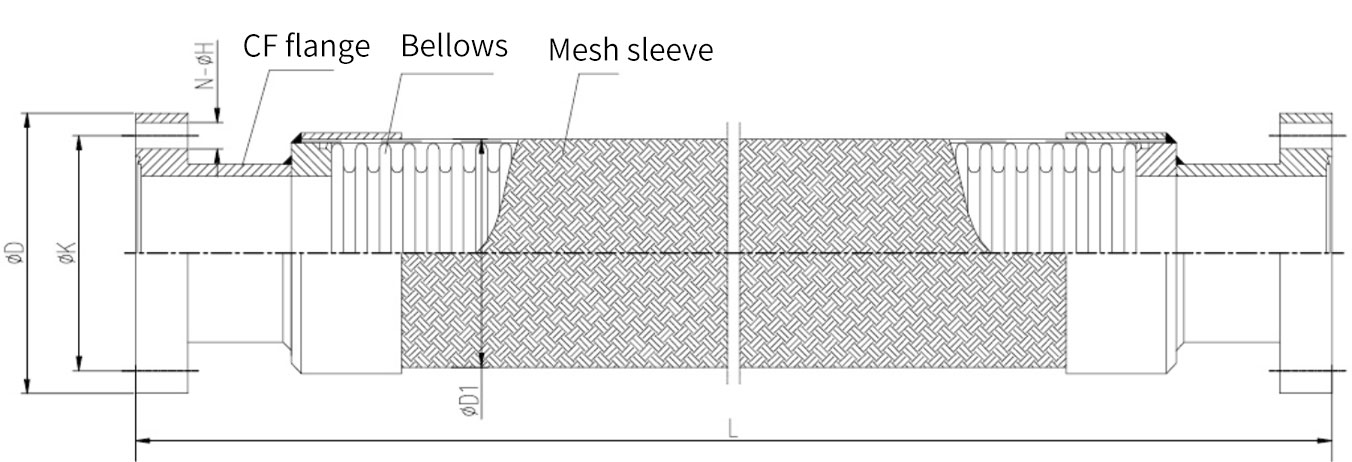

Vacuum hose with mesh
