Standard Specification
MATERIA | Corrugated pipe SUS304, SUS316L Flange SUS304 Flange SUS316L |
WORKING PRESSURE | Vacuum to atmospheric pressure |
ALLOWABLE LEAK RATE | 1.33x10-10 Pa·m3/sec and below |
Standard Size

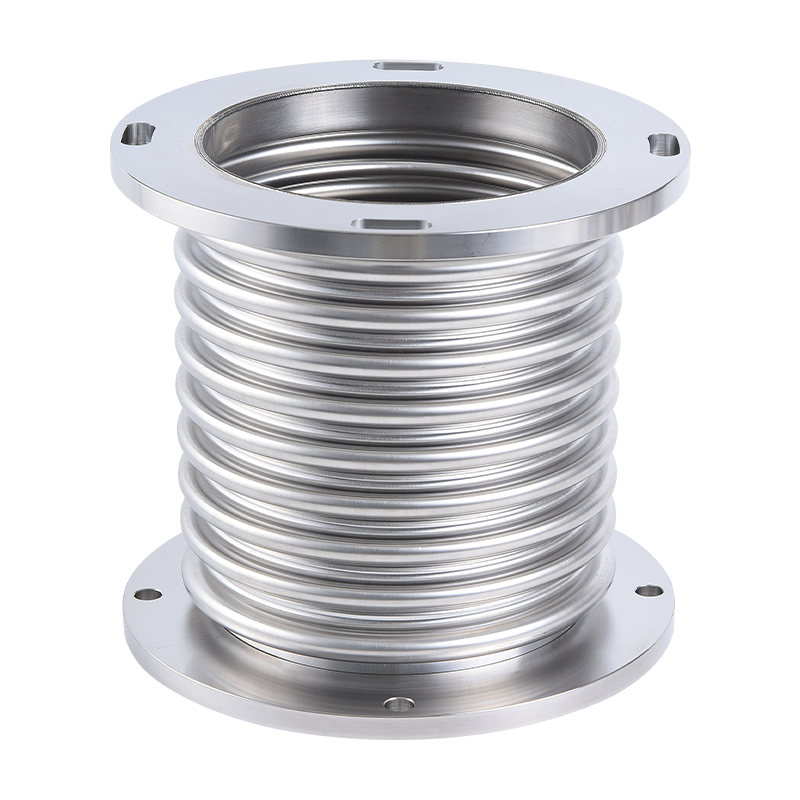

ISO-K vacuum bellows | |||||
DN | ∅D1 | ∅D2 | h | C | L |
63 | 95 | 10 | 4.5 | 12 | 150 |
80 | 110 | 83 | 4.5 | 12 | 150 |
100 | 130 | 102 | 4.5 | 12 | 150 |
125 | 155 | 127 | 4.5 | 12 | 200 |
160 | 180 | 153 | 4.5 | 12 | 200 |
200 | 240 | 213 | 4.5 | 12 | 200 |

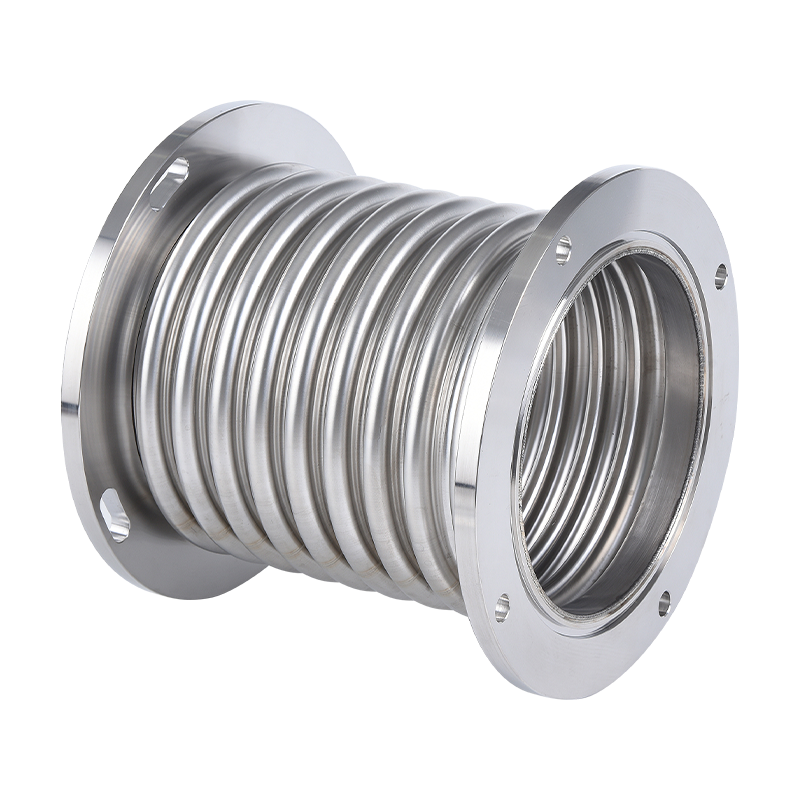

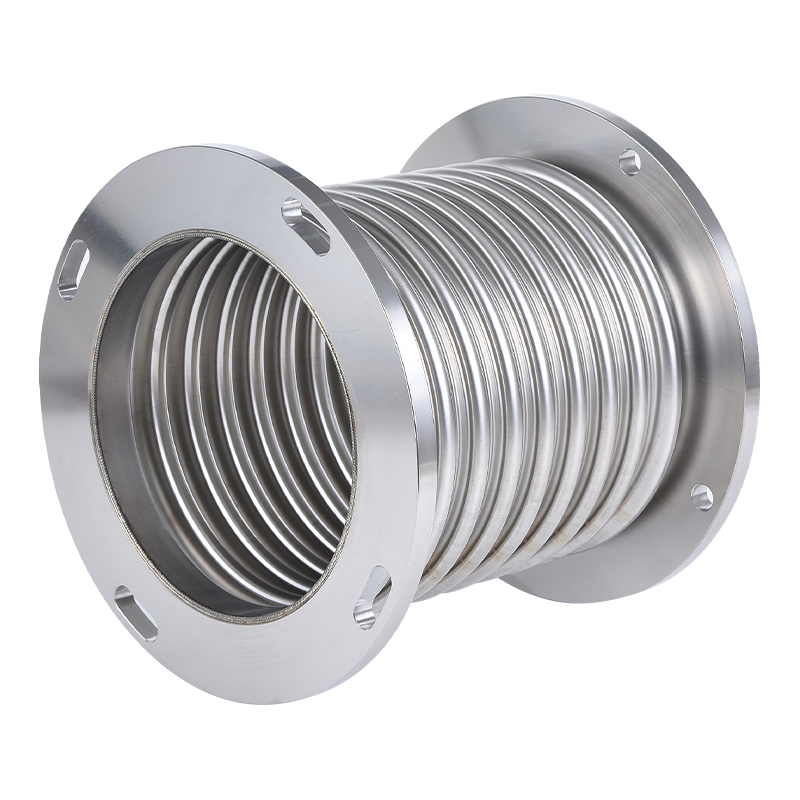

ISO-F vacuum bellows | |||||
DN | ∅D1 | ∅K | C | N-∅L | L |
63 | 130 | 110 | 10 | 4-∅9 | 150 |
80 | 145 | 125 | 10 | 8-∅9 | 150 |
100 | 165 | 145 | 10 | 8-∅9 | 150 |
125 | 200 | 175 | 10 | 8-∅11 | 200 |
160 | 225 | 200 | 10 | 8-∅11 | 200 |
200 | 285 | 260 | 14 | 12-∅11 | 200 |
Remarks
·If you have any questions about selection, please consult us. ·We can manufacture corrugated pipes of lengths not shown in column L. ·We can manufacture corrugated pipes with double-headed bolts to prevent loosening.
·We can manufacture corrugated pipes of DN250 or larger. ·ISO flanges can be changed to KF or CF flanges according to customer requirements.
